HMI Touch Panels

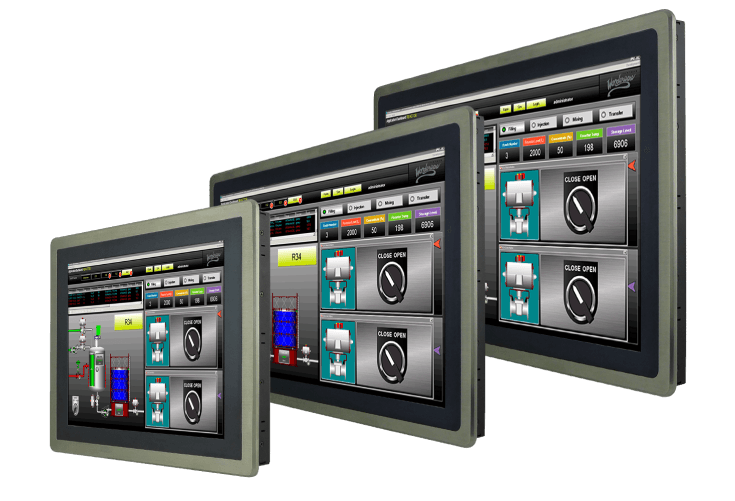

 HMI Touch Panel and Industrial PCAIS next generation 7-24" HMI Touch Panel Series are engineered to meet the increasingly complex processes, demanding visualization and control tasks of machines and automation systems while simplifying operation and programming. Using flexible and standardized interfaces for embedded computing allows for easy and efficient integration for almost any machine, application or environment.

FLEXIBLE + MODULAR + RELIABLE = EFFICIENCY

Open HMI Touch Panel and Industrial PCAIS Industrial HMI’s open-architecture also allows compatibility with WEB, PLC, HMI, SCADA and MES applications. An open platform HMI also ensures network security and enables users to leverage new TCP/IP-based Networking, HTML5 Web Browsers, Web-enabled HMI/SCADA, Industrial Automation, Field Mobility, M2M, Industry 4.0 and IoT applications.

The next generation of HMIs including the new Premium, Standard, Compact PLUS and Compact Line, are available in displays with both analog resistive single-touch and (PCT/PCAP) projected capacitive multi-touch, ranging from 7” to 24” screen sizes. AIS Automation HMI Panels are rugged and certified (UL/cUL/CB 61010 and 62368) for automation, information and communication applications while providing maintenance-free products for harsh and/or standard industrial environments. Brochure is available in Adobe Acrobat (PDF) format, Download Today!

BUILT-TO-ORDER & FIELD-REPLACEABLE

Modular Touch Panel and Industrial PCAIS’s newest family of industrial touch panel HMIs feature a highly modular design that provides a complete range of control and monitoring solutions which allow both touchscreen display and Box IPC (Industrial PC) to be built according to specific customer needs and requirements. Our intelligent HMIs have been engineered with a common design and architecture, making HMI functionality identical throughout the entire family of HMI solutions, delivering many advantages. AIS HMI Touch Panels are scalable systems, which make them expandable by changing the displays or the computing power of the PC engine.

Easy Integration with SCADA, MES and ERP Applications

Easy Integration with SCADA, MES and ERP ApplicationsAIS’s Industrial Panel PC modular design allows your HMI/SCADA/MES system to grow and expand as your needs change. Efficient interaction between all automation components and intelligent control systems optimize processes which reduces total cost of ownership. AIS modular HMI Panels are easily configured with various display sizes, computing power, operating systems and third-party systems integration.

Supporting Network Infrastructure Layers / Internet Protocol Suite

AIS’s cloud-computing ready, internet-based, HMI touch panels support OPC UA, MQTT, and REST IoT protocols and web-based software for advancing industry 4.0 applications in smart manufacturing.

Application Layer: OPC, FTP and HTTP. An application layer is an abstraction layer that specifies the shared protocols and interface methods used by hosts in a communications network.
Transport Layer: The Transmission Control Protocol (TCP) is a core protocol of the Internet protocol suite. It originated in the initial network implementation in which it complemented the Internet Protocol (IP).
Network Layer: The Internet Protocol (IP) is the principal communications protocol in the Internet protocol suite for relaying datagrams cross network boundaries.
Data Link: Ethernet IEEE 802.3 is a working group and a collection of IEEE standards produced by the working group defining the physical layer and data link layer’s media access control (MAC) of wired Ethernet.


Benefits

  • Open and standardized interfaces in hardware & software for HMI, SCADA & MES applications
  • OPC, MQTT, & REST IoT protocols & web-based software for advancing industry 4.0 applications
  • PC-based automation uses standard Ethernet & TCP/IP for easy HMI/SCADA & IT/OT integration
  • Web-enabled HMI with HTML5-compliant web browsers for improved real-time decision making
  • Easy to replace, highly modular designed field-replaceable front display and box PC modules
  • Maintenance-free illumination system with lifetime rating of 80,000-100,000 hours on Eco mode
  • Expandable HMI solutions with multiple configurations & options for fast project engineering
  • International marks and schemes for safety equipment, certification and regulatory compliance
  • Ease of use of PoE powered device leading to reduction in time & cost to install electrical cabling
  • Automatic battery backup power module for mission-critical automation and control applications
  • Cloud computing ready HMI panel PCs with pre-installed and/or activated Windows 10 IoT Enterprise
  • IT-OT convergence, M2M communications, Industry 4.0, and IoT ready for future requirements

Premium HMI Touch Panels

AIS Premium HMI Panel PCs are equipped with: NEMA 4X/IP66-compliant stainless steel front bezels featuring a corrosion and chemical resistant surface, integrated with Intel® Core™ i7-4650U Processor (4M Cache, up to 3.30 GHz), DDR3L-1600 memory up to 16 GB, RAID high availability storage, PCIe expansion slot, and 12-24 VDC power supply. They come standard with Windows Embedded Standard 7/8 and an X86 PC-based platform. The Premium series is modular, field-replaceable, easy to service, maintenance-free, rugged and fan-less. It is able to withstand high electromagnetic environments, as well as shock and vibration. Available in both single touch and multi-touch screen, wide screen options ranging from 15” to 24”, the new HMI family offers an extremely wide selection of interfaces and gesture-based touch panel solutions to serve its various requirements. Moreover, the Premium Series come with UL listing, CE Marking & CB Scheme – making them the most advanced, powerful, and no compromise modular HMI series with superior high speed processing capabilities that meet any HMI, SCADA, MES, ERP, networking or OEM applications.

Standard HMI Touch Panels

AIS Standard HMI Panel PCs are equipped with: NEMA 4X/IP66-compliant stainless steel front bezels featuring a corrosion and chemical resistant surface and utilize an Intel® Atom™ Processor E3845 (2M Cache, 1.91 GHz), DDR3L-1333 memory up to 8 GB, removable 2.5" SATA hard drive bay and 12-24 VDC power supply. They come with Windows Embedded Standard 7/8 and X 86 PC-based platforms and are modular, field-replaceable, easy to service, maintenance-free, rugged, fan-less, shock and vibration resistant and able to withstand high electromagnetic environments. The Standard series is available in both single and multi-touch screen models. Single touch models are available in 12.1”, 15”, 17”, 19”, 21.5” and 24” touch screen sizes. Multi-touch models include: 15.6”, 18.5”” and 21.5” display sizes. Moreover, the Standard Series come with UL listing and CB scheme certificate, offering functionality and affordability in a modular compact package covering the greatest range of industry requirements from medium-to-high-end HMI, SCADA, MES and OEM applications.

Compact Plus HMI Touch Panels

AIS Compact Plus panel PCs are equipped with NEMA 4/IP65-compliant aluminum front bezels, with corrosion resistant surface. Integrated with an Intel® Core™ i3-4010U Processor (3M Cache, 1.70 GHz), on-board non-volatile DDR3L-1600 memory up to 8 GB, and a standard SD card slot; the new series of touch panels deliver a great combination of performance, features and functionality at an affordable price. The Compact Plus HMIs come standard with Windows Embedded 7 or 8 (32/64-bit) operating systems, and are available in a variety of screen sizes (12.1” to 21.5”) in both single and multi-touch screens. These HMI systems offer compact and lightweight aluminum die-cast housing and are easy to service, maintenance-free, space-saving, fan-less, able to withstand high electromagnetic environments, and are resistant to shock and vibration. Moreover, the Compact Series come with UL listing, CE Marking & CB Scheme – making them the most advanced, powerful, and no-compromise HMI series with superior high speed processing capabilities; that meet any industrial machine control, visualization, HMI, SCADA, MES, ERP, networking or OEM applications.

Compact HMI Touch Panels

AIS Compact HMI Panel PCs are equipped with NEMA 4/IP65-compliant aluminum front bezel, corrosion resistant surface. Integrated with an Intel® Celeron® Processor N2930, on-board non-volatile DDR3L-1333 memory and a standard SD card slot, the new series of touch panels deliver a great combination of performance, features and functionality at an affordable price. The Compact line of HMIs come standard with Windows Embedded Compact 7, Embedded 7 or 8 (32/64-bit) operating systems and are available in a variety of screen sizes (7” to 21.5”) in both single and multi-touch. These systems offer real-time performance, compact and lightweight aluminum die-cast housing and are: easy to service, maintenance-free, space-saving, fan-less, able to withstand high electromagnetic environments and are resistant to shock and vibration. Moreover these come with UL listing and CB scheme certificate and are: simpler, smarter, and more cost-effective all-in-one solutions. AIS offers the greatest value, feature set and capabilities for use 24/7 at machine level HMI, operator control and visualization applications.
